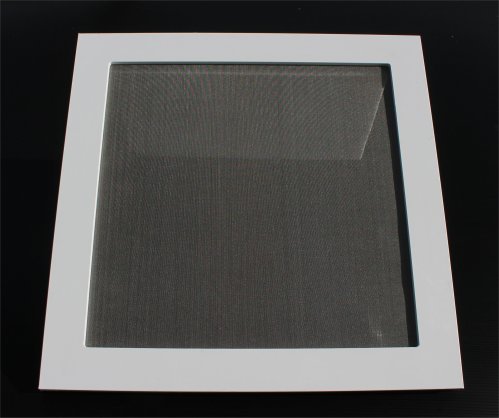

Biomesh Insect Mite Screen
Product Features
Customised sizes and shapes manufactured to your specific requirements
- Polymer frame bonded to stainless steel mesh
- SS316 grade stainless steel mesh in either of two grades: 263 Um (=37% open area) [ default ] 98 Um (=35% open area) other grades on application
- An integral EPDM seal allows simplified installation.
- Screen will mate up to any flat surface. (recommended minimum flat face depth = 25mm )
Description
The BioMesh Mite Screen is used as an intercepting barrier in air-conditioning systems in laboratories working in animal, botanical and entomological research facilities amongst others. Our Biomesh screens meet the current Australian Standard AS/NZS 2243.
Documents for Download
Specifications
Testing conducted under the auspices of “Advanced Filtration” on 2nd September, 2016 at their premises on their test equipment to determine the pressure drop generated by the two meshes when placed in a duct and subjected to varying air velocities, provided the following data as tabulated below:
| Velocity m/s | Pressure Drop (Pa) | |
| 263uM Mesh | 98uM mesh | |
| 0.5 | 2 | 4 |
| 1.0 | 4 | 6 |
| 1.5 | 6 | 10 |
| 2.0 | 8 | 13 |
| 2.5 | 10 | 18 |
| 3.0 | 15 | 26 |
| 3.5 | 24 | 32 |
| 4.0 | 26 | 40 |
| 5.0 | 50 | 85 |
| 6.0 | 100 | 180 |
